Number：12611A
Name：BSP Male Double USE For 60°Cone Seat OR BondedSeal
Hyrotech упорно борется за удовлетворение потребностей каждого клиента. Добро пожаловать клиенты от во всем мире для того чтобы связаться мы.
Number：12611A
Name：BSP Male Double USE For 60°Cone Seat OR BondedSeal

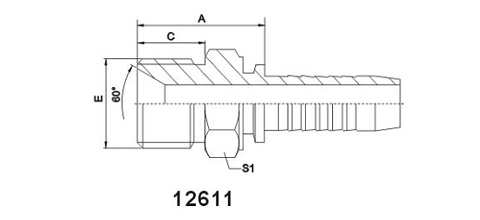

BSP Male Double USE For 60°Cone Seat OR BondedSeal
HOSE BORE | DIMENSIONS | |||||
PART NO. | THREAD E | DN | DASH | A | C | S1 |
12611A-02-03 | G1/8"X28 | 5 | 3 | 22 | 10 | 14 |
12611A-04-04 | G1/4"X19 | 6 | 4 | 24.5 | 12 | 19 |
12611A-04-05 | G1/4"X19 | 8 | 5 | 24.5 | 12 | 19 |
12611A-06-06 | G3/8"X19 | 8 | 5 | 26 | 13.5 | 22 |
12611A-06-06 | G3/8"X19 | 10 | 6 | 28 | 13.5 | 22 |
12611A-06-08 | G3/8"X19 | 12 | 8 | 28.5 | 13.5 | 22 |
12611A-08-06 | G1/2"X14 | 10 | 6 | 33 | 16 | 27 |
12611A-08-08 | G1/2"X14 | 12 | 8 | 33.5 | 16 | 27 |
12611A-08-10 | G1/2"X14 | 16 | 10 | 32 | 16 | 27 |
12611A-10-08 | G5/8"X14 | 12 | 8 | 35 | 17.5 | 30 |
12611A-10-10 | G5/8"X14 | 16 | 10 | 36 | 17.5 | 30 |
12611A-12-08 | G3/4"X14 | 12 | 8 | 36.5 | 18.5 | 32 |
12611A-12-10 | G3/4"X14 | 16 | 10 | 37.5 | 18.5 | 32 |
12611A-12-12 | G3/4"X14 | 20 | 12 | 37.5 | 18.5 | 32 |
12611A-16-12 | G1"X11 | 20 | 12 | 42.5 | 20.5 | 41 |
12611A-16-16 | G1"X11 | 25 | 16 | 43.5 | 20.5 | 41 |
12611A-20-16 | G1.1/4"X11 | 25 | 16 | 45.5 | 20.5 | 50 |
12611A-20-20 | G1.1/4"X11 | 32 | 20 | 46.5 | 20.5 | 50 |
12611A-24-24 | G1.1/2"X11 | 40 | 24 | 49 | 23 | 55 |
12611A-32-32 | G2"X11 | 50 | 32 | 54.5 | 25.5 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12612A-xx-xx | ||||||
