Number：22111
Name：BSP Female Multiseal
Hyrotech упорно борется за удовлетворение потребностей каждого клиента. Добро пожаловать клиенты от во всем мире для того чтобы связаться мы.
Number：22111
Name：BSP Female Multiseal

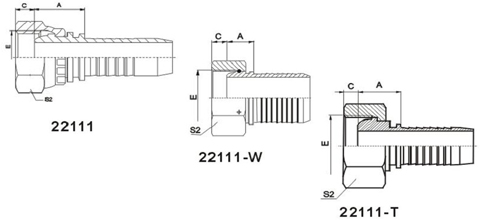

BSP Female Multiseal
HOSE BORE | DIMENSIONS | |||||
PART NO. | THREAD E | DN | DASH | A | C | S2 |
22111-02-04 | G1/8"X28 | 6 | 4 | 19 | 2 | 14 |
22111-04-03 | G1/4"X19 | 5 | 3 | 19 | 4 | 19 |
22111-04-04 | G1/4"X19 | 6 | 4 | 19.5 | 4 | 19 |
22111-06-05 | G3/8"X19 | 8 | 5 | 20 | 5 | 22 |
22111-06-06 | G3/8"X19 | 10 | 6 | 20.5 | 5 | 22 |
22111-06-08 | G3/8"X19 | 12 | 8 | 21 | 5 | 22 |
22111-08-08 | G1/2"X14 | 12 | 8 | 23 | 6 | 27 |
22111-08-10 | G1/2"X14 | 16 | 10 | 24 | 6 | 27 |
22111-10-10 | G5/8"X14 | 16 | 10 | 25 | 8 | 30 |
22111-10-12 | G5/8"X14 | 20 | 12 | 25 | 8 | 30 |
22111-12-10 | G3/4"X14 | 16 | 10 | 26 | 9.5 | 32 |
22111-12-12 | G3/4"X14 | 20 | 12 | 26 | 9.5 | 32 |
22111-16-14 | G1"X11 | 22 | 14 | 26.5 | 11 | 41 |
22111-16-16 | G1"X11 | 25 | 16 | 28 | 11 | 41 |
22111-08-06T | G1/2"X14 | 10 | 6 | 22.5 | 6 | 27 |
22111-12-08T | G3/4"X14 | 12 | 8 | 25 | 9.5 | 32 |
22111-16-12T | G1"X11 | 20 | 12 | 26.5 | 11 | 41 |
22111-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 11 | 50 |
22111-20-20W | G1.1/4"X11 | 32 | 20 | 31.5 | 10 | 50 |
22111-24-24W | G1.1/2"X11 | 40 | 24 | 37 | 11.5 | 55 |
22111-32-32W | G2"X11 | 50 | 32 | 34 | 15 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22112-xx-xx； | ||||||
