Number:22611D

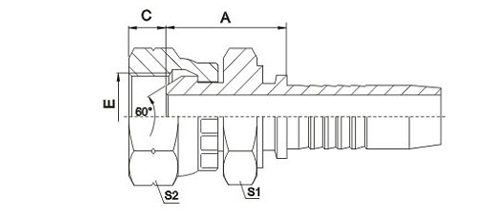

Name:BSP Female 60°Cone Double Hexagon
BSP Female 60°Cone Double Hexagon
HOSE BORE
DIMENSIONS
PART NO.
THREAD E
DN
DASH
A
C
S1
S2
22611D-04-04
G1/4"X19
6
4
23.5
5.5
19
22611D-06-06
G3/8"X19
10
26.5
6.3
22
22611D-08-08
G1/2"X14
12
8
31
7.5
27
22611D-10-08
G5/8"X14
32
9.5
30
22611D-12-08
G3/4"X14
33
10.9
22611D-12-12
20
34
22611D-16-16
G1"X11
25
16
35.5
11.7
41
22611D-20-20
G1.1/4"X11
43.5
11
50
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22612D-xx-xx
